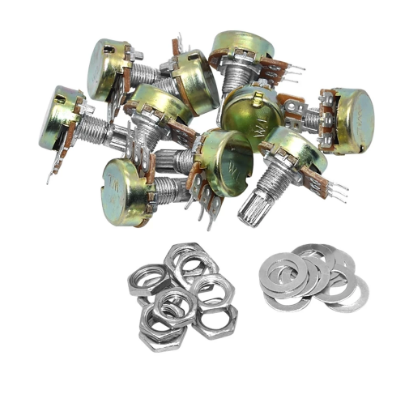

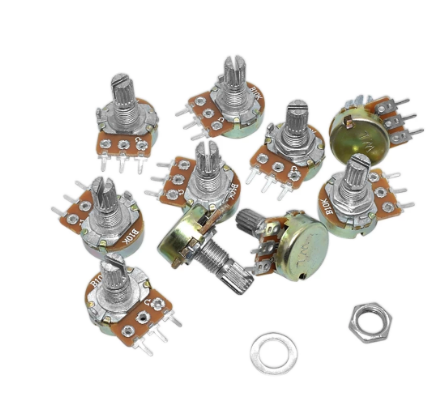

20pcs 50k Single Linear Knurled Shaft Control Volume Potentiometer Silver

Potentiometer is a resistor. When you turn the pot, you change the level of resistance. A potentiometer taper is the relationship between the position of the pot (as you turn it) and the corresponding output. This is important when using an audio potentiometer as a volume knob because humans perceive volume changes logarithmically. This means that if you use a logarithmic pot (type A), the volume sweep is evenly distributed through the rotation of the knob.

The Specs:

16mm potentiometer

Knurled shaft measures 6mm OD

With nut and washer

Logarithmic / Type A, Linear / Type B, or Reverse Log / Type C

Solder Lugs

Power Rating: B Taper 0.2W / Other Tapers 0.1W

Rotation Angle 300 degrees

Max voltage: B taper  200VAC/Other Tapers 150VAC

20% tolerance range
