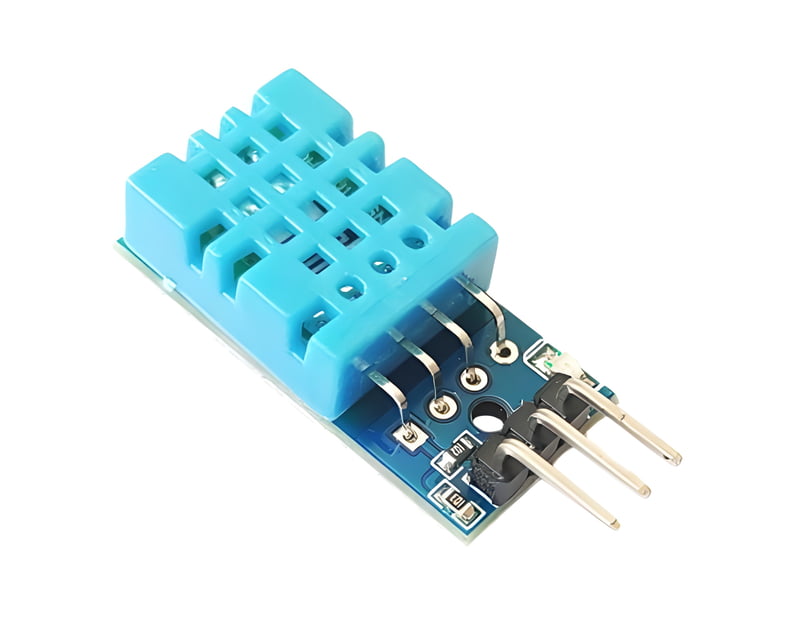

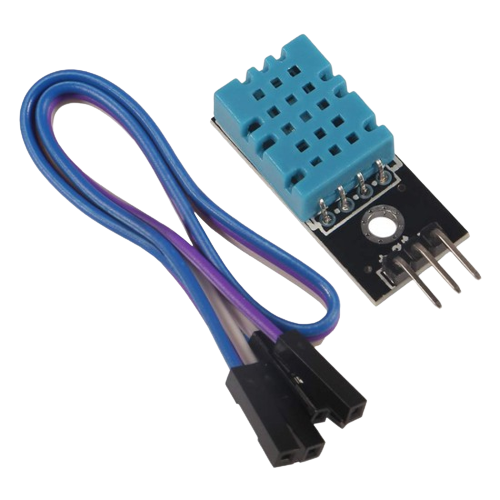

DHT11 Temperature and Humidity Sensor Module
DHT11 Temperature and Humidity Sensor Module
Regular price
₦999.00 NGN
Regular price
Sale price
₦999.00 NGN
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DHT11 is a Humidity and Temperature Sensor, which generates calibrated digital output. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and outputs a digital signal on the data pin (no analog input pins needed).
Specifications:-
1. Power Supply： 3.3~5.5V DC
2. Output： 4 pin single row
3. Measurement Range：Humidity 20-90%RH，Temperature 0~50℃
4. Accuracy： Humidity +-5%RH， Temperature +-2℃
5. Resolution： Humidity 1%RH， Temperature 1℃
6. Interchangeability： Fully Interchangeable
Pin Description:
Pin 1: Power +Ve (3.3VDC to 5.5VDC Max wrt. GND)
Pin 2: Serial Data Output
Pin 3: Ground (–Ve)
