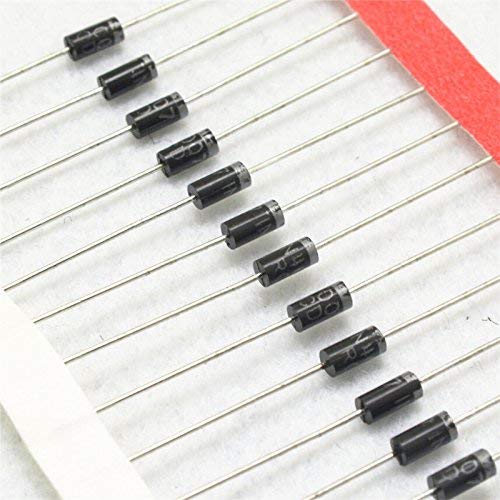

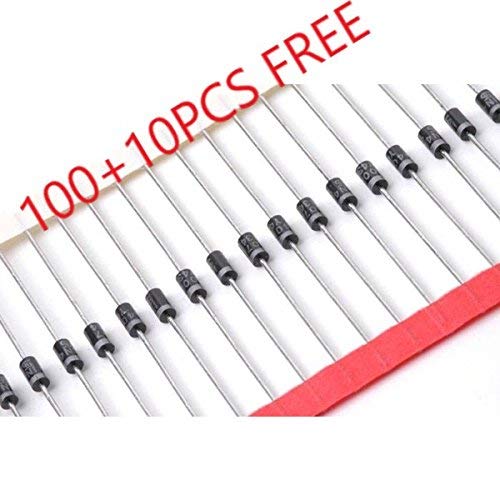

IN4007 RECTIFIER DIODE 1A 1000V 100PCS(+10pcs FREE)

A diode is a device that only permits one direction of current flow. To put it another way, the current must always go from the anode to the cathode. The 1N4007 is a type of general-purpose silicon rectifier diode with a 1 A current rating that is frequently found in AC adapters for everyday home appliances. It is an inefficient rectifier diode for square waves above 15 kHz, making it a rather low-speed device. The 1N4007 diode has a molded plastic housing and functions as a typical recovery rectifier. It can resist peak currents of up to 30A and has a maximum current carrying capacity of 1A. Therefore, this diode can be used in circuits rated for less than 1A. Although the reverse current is minuscule (5uA), it can endure a reverse voltage peak of up to 1000V.

1N4007 Diode specifications

• Vr – Reverse Voltage, 1000 V
• If – Forward Current, 1 A
• Type, Standard Recovery Rectifiers
• Configuration, Single
• Vf – Forward Voltage, 1 V
• Max Surge Current, 30 A
• Ir – Reverse Current, 5 uA
• Minimum Operating Temperature, – 65 C
• Maximum Operating Temperature, + 150 C
• Diffused Junction
• High Current Capability and Low Forward Voltage Drop
• Surge Overload Rating to 30A Peak
• Low Reverse Leakage Current
• Lead-Free Finish, RoHS Compliant
