IR Sensor/Infrared Proximity Obstacle Detecting Sensor Module (Set of 2)
IR Sensor/Infrared Proximity Obstacle Detecting Sensor Module (Set of 2)
Regular price
₦1,450.00 NGN
Regular price
Sale price
₦1,450.00 NGN
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

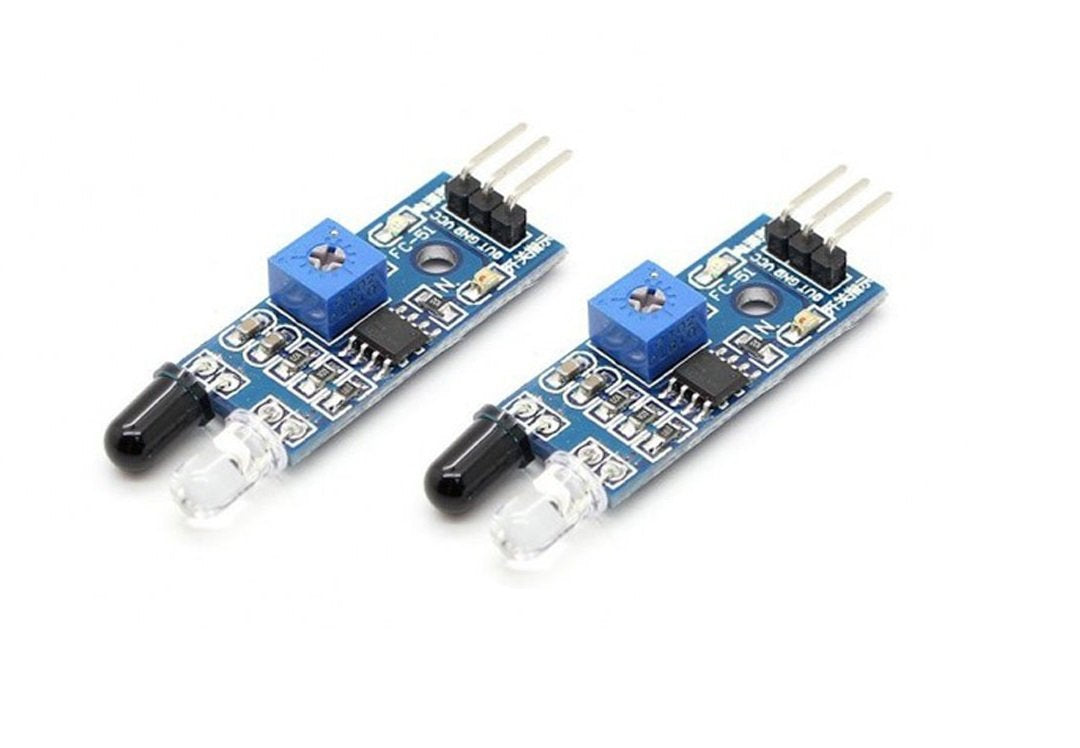

IR Infrared Obstacle Avoidance Sensor Module by ADIY has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life.

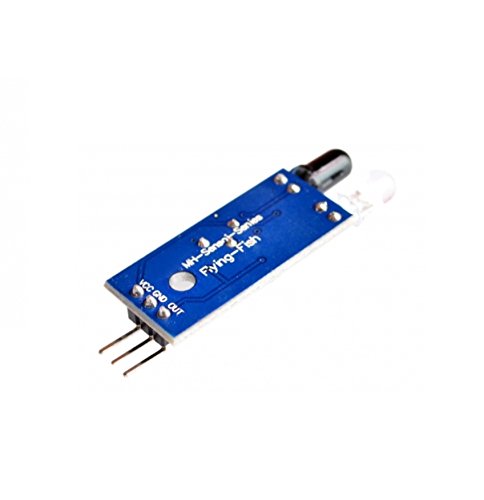

The module features a 3 wire interface with VCC, GND and an OUT pin on its tail. It works fine with 3v3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine tune the range of operation, effective distance range is 2cm to 10cm.
- Infrared Obstacle Avoidance IR Proximity Sensor Module: Detects obstacles using infrared light.
- Function: Outputs a signal when an object is detected.
- Applications: Ideal for collision avoidance in robotics and automation projects.
- Range: Provides reliable proximity sensing within a specific range.
- Compatibility: Easy to integrate with microcontrollers like Arduino.
- Benefits: Reliable, simple to use, and effective for various obstacle detection applications.
