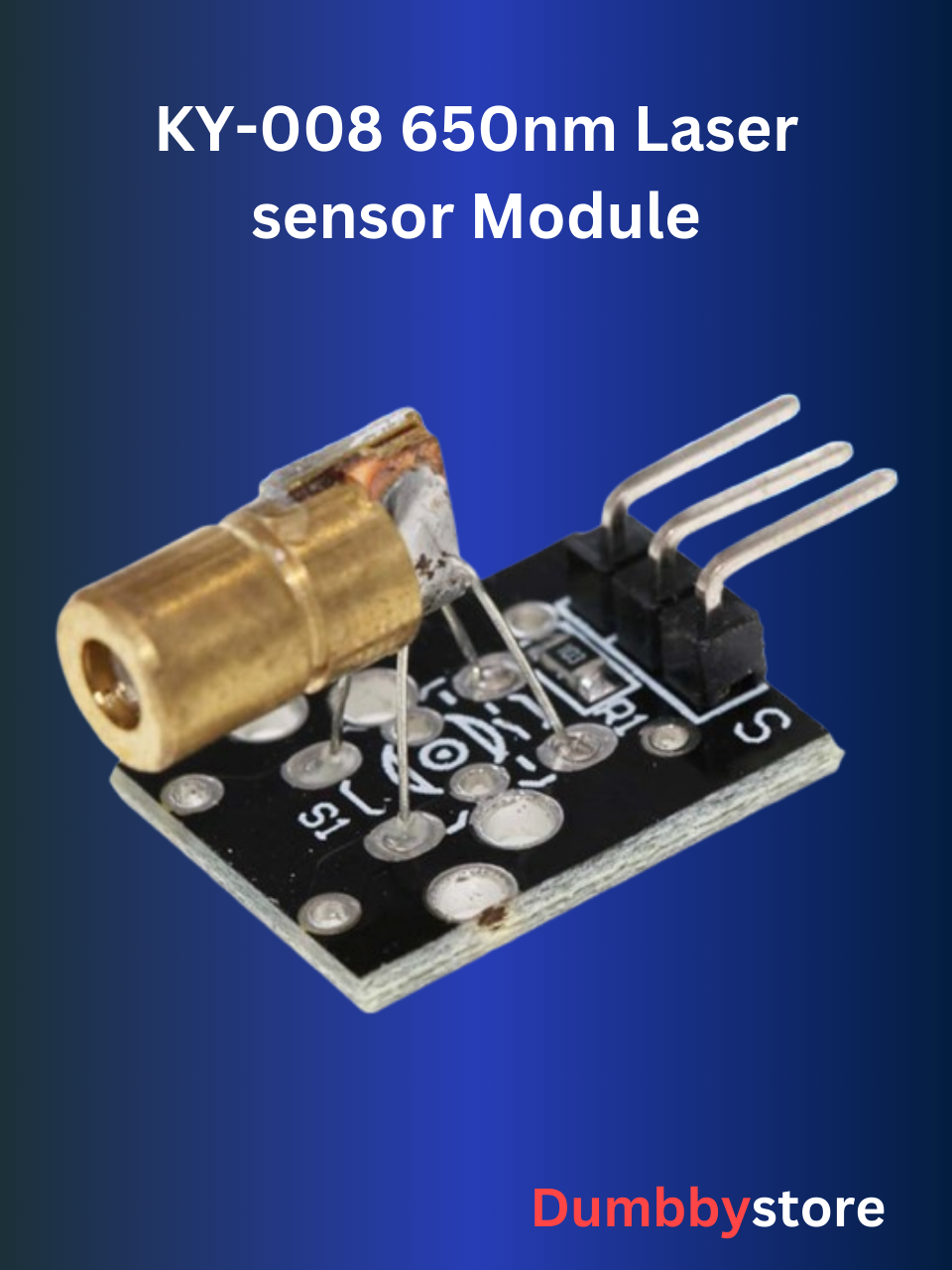

Laser diode module KY-008

Laser Diode Module is a breadboard friendly, low cost having wavelength of 650nm and operating voltage of 5V. The laser head is composed of a light-emitting tube, condenser lens and adjustable copper sleeve and it is assembled when delivered, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5v dc power supply. Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.

Features

KY-008 Laser transmitter module consists of a 650nm red laser diode head and a resistor.

• Operating Voltage 5V
• Output Power 5mW
• Wavelength 650nm
• Operating Current less than 40mA
• Working Temperature -10°C ~ 40°C [14°F to 104°F]
• Dimensions 18.5mm x 15mm [0.728in x 0.591in
